Large power cables create a different cable-management challenge from lightweight control and communication wiring. Their weight, bending requirements, heat dissipation, support arrangement, and installation access all influence the type of tray system that may be appropriate.
For projects involving substantial cable runs, a Ladder Cable Tray Manufacturer in Delhi NCR can supply configurations designed around the requirements of industrial and infrastructure installations.
How Ladder Cable Trays Work

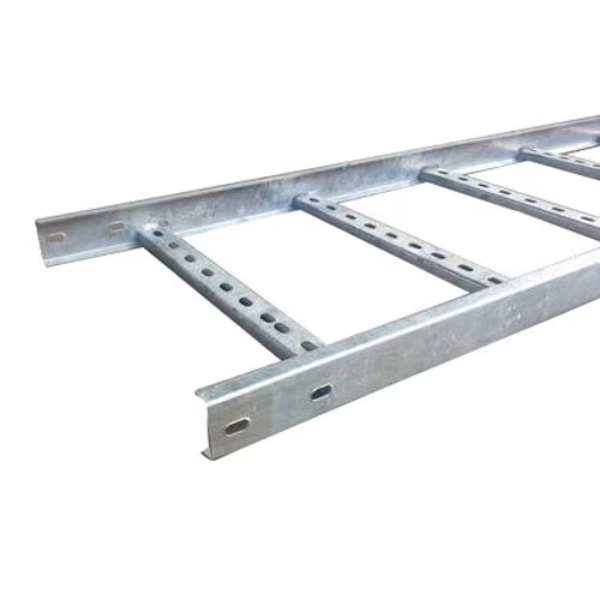

Ladder cable trays typically consist of two longitudinal side members connected by regularly spaced transverse rungs.
The open construction creates convenient locations for securing cables and provides substantial ventilation around the cable run. It also gives installers access from different directions during cable laying and maintenance.
These characteristics can make ladder-type trays suitable for selected power-cable applications, subject to engineering calculations and project specifications.
Where Ladder Trays Are Commonly Considered
Applications vary from project to project, but ladder trays may be specified for cable routes in:
- Manufacturing plants
- Utility installations
- Industrial sheds
- Infrastructure facilities
- Electrical substations and service areas
- Large commercial developments
- Plant rooms
- Process facilities
The appropriate design depends on cable load, span, route, environment, support arrangement, and applicable project standards.
Load Capacity Requires More Than a Visual Estimate
A common mistake is assuming that a tray that looks strong enough will automatically support a planned cable load.
Tray width, side-rail design, material thickness, support spacing, cable distribution, fittings, and installation conditions can all influence mechanical performance.
Longer distances between supports can increase tray deflection and stress. Consequently, support spacing should be established as part of the system design rather than decided casually during installation.
Contractors should work from approved engineering drawings and manufacturer information where applicable.
Cable Bending Needs Space
Large power cables cannot be turned sharply simply because the building route changes direction.
Cable manufacturers specify minimum bending requirements, and the cable tray route needs fittings that accommodate these requirements. Vertical bends, horizontal bends, tees, crosses, and reducers should therefore be considered during route planning.
Poor coordination can create difficult pulling conditions and unnecessary cable stress.
Open Construction Helps With Inspection
The open format of a ladder tray can make cable routes relatively easy to inspect. Technicians can visually examine cable arrangement and access sections when maintenance or additions are required.
However, open construction also means environmental exposure must be considered. Where protection from falling objects, contamination, weather, or other conditions is required, suitable covers or alternative arrangements may be needed.
S.V. Metals & Extrusions Pvt. Ltd. manufactures cable trays and related cable-management components for projects in Greater Noida and the wider Delhi NCR region. Project teams can define requirements based on dimensions, material, finish, load expectations, fittings, and quantities.
A System Approach Produces Better Results
A Ladder Cable Tray Manufacturer in Delhi NCR should be viewed as part of a broader cable-management planning process.
The tray itself is only one component. Supports, bends, couplers, fasteners, covers, earthing considerations, cable securing methods, and installation clearances all contribute to system performance.
When these details are addressed during design and procurement, contractors can reduce improvised site modifications and create a cable route that remains accessible as the facility evolves.
